DECOILER

Download Brochure

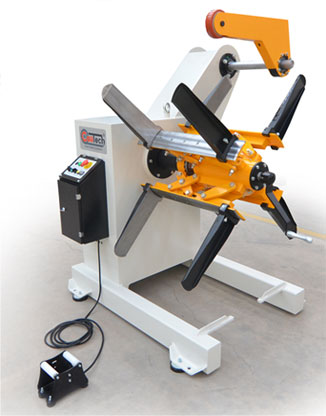

CMC M Series Decoilers

At our mechanical drum decoilers, we have models with loading capacity ranging between 500kgs to 3000kgs. After loading the coil drum, mandrel expansion of mechanical decoilers driven with a mandrel expansion arm.

500 - 3000 kgs coil loading capacity
300-600mm coil width

Standard Features

  • Speed control system
  • Loop control system with laser sensor
  • Left-right decoil direction
  • Four arm drum expansion

Optional Features

  • Pheumatic hold up/down arm
  • Long body for wide outer dimensions
  • Non-motorized system
  • Electro pneumatic disc break

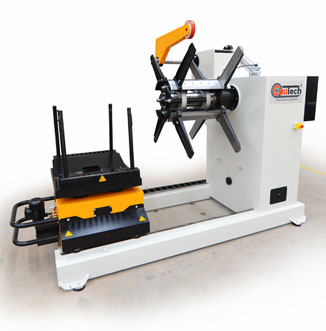

CMC H Series Heavy Duty Decoilers

Hydraulic drum decoilers with loading capacity between 2000kgs to 15000kgs. Drum expansion moves by hydraulic system on conical beddings.

2000 - 15000 kgs coil loading capacity
Up to 1500mm coil width capacity

Standard Features

  • Pneumatic hold down arm
  • Speed control system
  • Loop control system with laser sensor
  • Left-right decoil direction
  • Four arm drum expansion

Optional Features

  • Loading car
  • Hydraulic hold up/down arm
  • Motorized hold up/down arm wheel
  • Pneumatic disc break system
  • Conical lateral guides

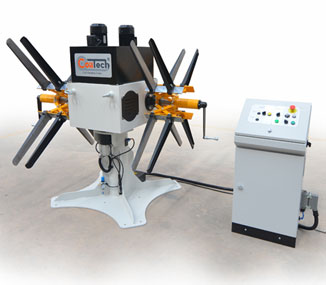

CMCX Series Double Head Decoilers

Double head decoiler system; to use in high speed lines and easy coil interchange.

500 - 3000 kgs coil loading capacity
300-600mm coil width

Standard Features

  • Speed control system
  • Loop control system with laser sensor
  • Left-right decoil direction
  • Four arm drum expansion

Optional Features

  • Pneumatic hold up/down arm
  • Long body for wide outer dimensions
  • Non-motorized system
  • Electro pneumatic disc break

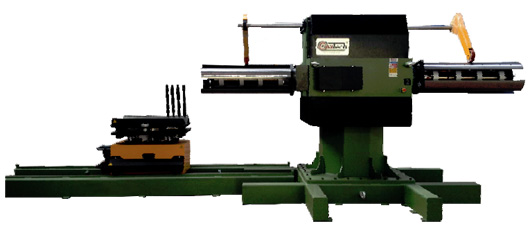

Hydraulic Double Head Decoilers - CMCH X Series

For easy coil interchange, double head hydraulic decoiler systems to use in high speed lines.

2000 - 15000 kgs loading capacity
Up to 1500 mm coil width capacity

Standard Features

  • Pneumatic hold down arm
  • Speed control system
  • Loop control system with laser sensor
  • Left-right decoil direction
  • Four arm drum expansion

Optional Features

  • Loading car
  • Hydraulic hold down arm
  • Motorized hold down arm wheel
  • Hold up arm cannot be aplicable
  • Pneumatic disc break system
  • Conical lateral guides
  • Motorized drum interchange system

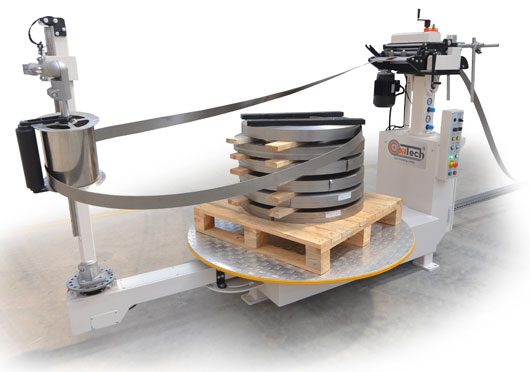

Horizontal Decoilers





  • 3000Kg pallet loading capacity
  • 500mm loading heigh capacity(included pallet)
  • Adjustable position of tention rod for working direction
  • Pneumatic torque control system
  • Straightener group can be assemble as an option
