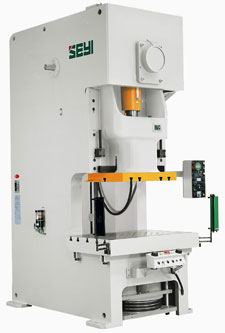

SN1 SERIES

SN1 SERIES SN1-25~250 TONS

APPLICATION

Applicable to light, thin material, for single, and progressive die application in blanking, piercing, bending, forming, interlink with ROT line or transfer unit.


SN1-SeriesFEATURES

  • High torque, low noise wet clutch and brake.
  • Rigid frame with less deflection.
  • High accuracy transmission gears and high rigidity crank ensure press long life and accuracy.
  • Forced Lubrication system with default monitor ensures the operation reliability.
  • User-friendly design and all-function electric control system enable the accessories to attach easily.
  • High accuracy meets the CNS 1st level.





DESIGNDESIGN

1. Motorized Slide Adjusting Device (SN1-60~250)
The motorized slide adjusting device is adopted with a thin brake motor and operated with push buttons. It provides stable positioning accurancy and quick adjustment.

2. Easy-to-use Slide Adjusting Device (SN1-25~45)
Simple, reliable manual slide adjuster with 0.1mm increment indicator.

3. Auto Lubrication System
The auto lubrication system with default monitor ensures high reliable operation.


4. Standard Attachments

  • Hydraulic Overload Protector.
  • Manual Slide Adjusting Device.(SN1-25~45)
  • Electrical slide Adjusting Device.(SN1-60~250)
  • Die Height Indicator.(SN1-60~250)
  • Counter Balancers of Slide.
  • Rotary Cam Limit Switch.
  • Antirepeat Safety Device.
  • Magnetic Strokes Counter.
  • Miss Feed Detector Socket.
  • Pneumatic Ejector.
  • Air Outlet.
  • Maintance Tools.

5. Optional Attachments
  • Power Take-off shaft.
  • Pneumatic Die Cushion.
  • Photoelectric Safety Device.
  • Variable Speed Motor.(Inverter)
  • Quick Die Change Device.(Q.D.C.)
  • Preset Counter.
  • Knockout Device.
  • Foot Switch.
  • Rubber Mount
